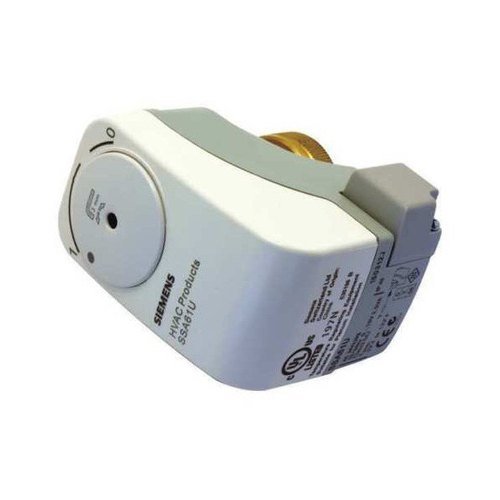

SIEMENS PIBCV ACTUATOR SSA61
Actuator is a means by which a valve can be automated so that no human interaction is necessary to cycle the valve. Our in-depth knowledge and industrial expertise has enabled us to emerge as a reputed exporter and supplier of SIEMENS Actuator for PIBCV.
Description
Features:
– Light in weight
– Resistant to breakage
– Can withstand high impact
• SSA31.. operating voltage AC 230 V 3-position control signal
• SSA81.. operating voltage AC 24 V 3-position control signal
• SSA61.. operating voltage AC / DC 24 V DC 0…10 V control signal
• SSA61EP.. equal-percentage valve characteristic
• Nominal force 100 N
• Automatic identification of valve stroke
• Direct mounting with coupling nut, no tools required
• Basic types complete with plug-in connecting cable, length 1.5 m
• Optional cable types
• Cable length 2.5 m and 4.5 m
• Halogen-free cables
• Manual override and position indication
• Parallel connection of multiple actuators possible
• Auxiliary switch integrated in SSA31.1 and SSA81.1 actuators
• Optional tamper-proof fitting to prevent dismantling
BRAND
SIEMENS
MOC
PLASTIC
MODEL NUMBER
SSA 61
OPERATION
ELECTRIC
