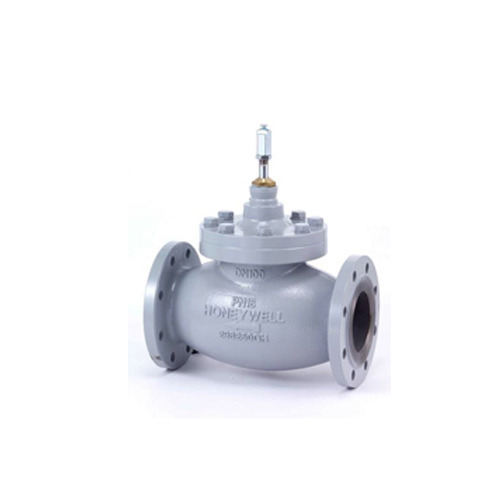

HONEYWELL 2 WAY CONTROL VALVE V5088A
Features
• Cast iron body with flanged end connections
• High Close-off Pressure Rating & Low seat leakage rate
• Metal to metal seating for long life span
• Self adjusting packing
• Accurate positioning to ensure state of the art temperature control
• Directly coupled with electric actuators for easy mounting
• Approved according to DIN 32730
Description
Specifications
Action : Stem down to close
Nominal pressure rating : PN16
Plug : Pressure balanced plug
Flow characteristic : Equal percentage
Rangeability : 50:1
Leakage rate : £0.1 % of kVS
Stroke : 38 mm
Valve body
End connections : Flanged per ISO 7005-2
Material : Cast iron (GG25) for PN16
Trim
Seat : Stainless steel, replaceable
Plug : Stainless steel, skirt guided
Stem : Stainless steel
Packing : Spring loaded PTFE V-rings
Medium temperature and pressure
Water & Steam PN16 2 … 120 ℃ : max. 1600 kPa
120 … 150 : max. 1440 kPa
150 … 200 ℃ : max. 1280 kPa
200 … 220 : max. 1200 kPa
BRAND
Honeywell
MOC
Cast Iron
MODE OF CONNECTION
Flanged End
MODEL NUMBER
V5088A
OPERATION
ELECTRICx
