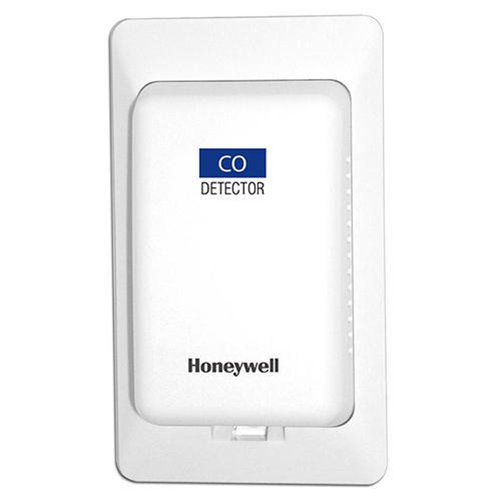

HONEYWELL CO SENSOR GD250W4NB
HONEYWELL Carbon Monoxide Sensor GD250W4NB is IAQ(Indoor Air Quality) sensor, which is designed to detect carbon monoxide gas in the air. This model has high accuracy at low concentration
Description
FEATURES
– High sensitivity and selectivity to carbon monoxide
– Low sensitivity to alcohol vapor
– Solid state sensor
– Linear 2 to 10 Vdc or 4 to 20mA output
– Compact size (70㎜×122㎜×32㎜)
Gas Detected : Carbon monoxide (CO)Sensor Type : SemiconductorDetect Range : 0~250ppmAccuracy : 1) +/-5% FS for 0~100ppm2) +/- 10% FS for 100~250ppmOutput Signal : 2~10Vdc (default) or 4~20mA (selectable by jumper)Power Supply : 24Vac 50/60Hz, 24Vdc, +/- 20%Sensor Life Expectancy : 3years
Coverage Area : 465㎡ (recommended)Response Time : Within 5 minutes.Warm-up Time : Minimum 2 hoursProtection Class : IP30Wiring : 3 or 4 wire compatibleOperating Temperature : 0 ~ 50 ℃.Operating Humidity : 10 ~ 95%RH (no condensing)Storage Temperature : -20 ~ 60 C.Storage Humidity : 10 ~ 95%RH (no condensing)
Additional information
BRAND
Honeywell
MOC
PLASTIC
MODEL NUMBER
GD250W4NB
OPERATION
ELECTRIC
