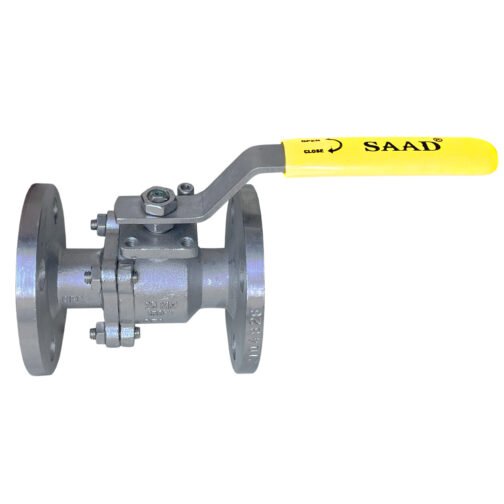

TWO PIECE BALL VALVE FLANGED END 150#/300#
The Two Piece Ball Valves are the most widely used ball valve.The Threaded & Flanged Ball Valve end connections allow for quick and easy installation to pipe thread.
Description
Body: CF8 (SS-304) / CF8M (SS-316) / WCB / MS (EN 8)
Ball: SS-304 / SS-316
Seat: PTFE
End Connection: Screwed To BSP F / Flanged
Pressure: Body : 77Kg/Cm2) Seat : 7Kg/Cm2)
Class (#): 150# / 300# / 600# / 800# / 900#
Application: Air / Oil / Water / Steam
Size Range: 15 MM To 1500 MM
